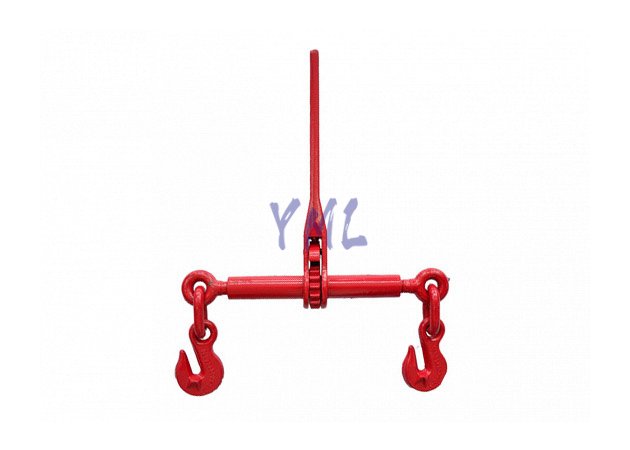

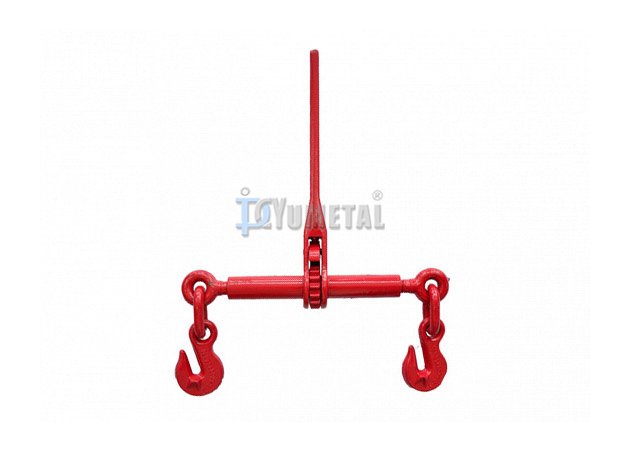

LB10 Australian  Standard Ratchet Type Load Binder

Technical parameters

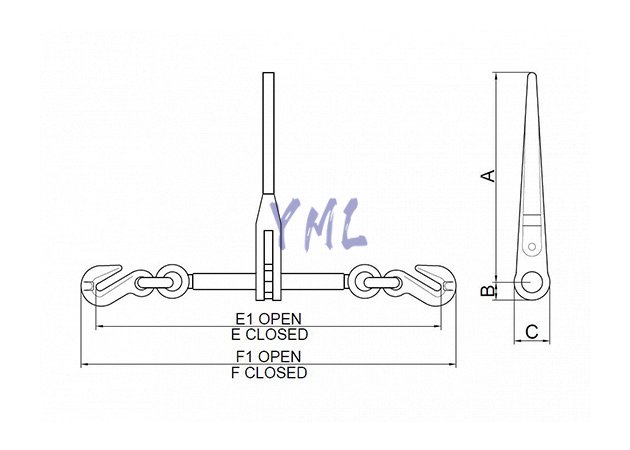

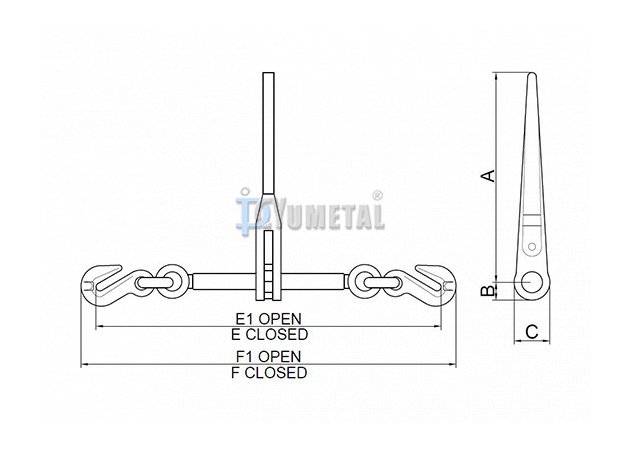

Art No.Min-Max ChainWLLProof LoadUltimate LoadWeight Handle LengthDimensions(inch)
inchlbslbslbslb/pcinchABCEE1FF1G
LB01-1/4-5/161/4-5/162600520092003.52 7.16 7.16 0.89 1.17 16.22 21.26 17.79 22.83 0.35
LB02-5/16-3/85/16-3/85400108001900010.50 13.92 13.92 1.30 2.60 22.64 30.64 25.24 33.24 0.51
LB03-3/8-1/23/8-1/29200184003300012.90 13.92 13.92 1.30 2.60 24.13 32.13 12.20 35.04 0.59
LB04-1/2-5/81/2-5/813000260004600014.38 21.00 13.92 1.30 2.60 26.45 34.45 30.07 38.07 0.74
