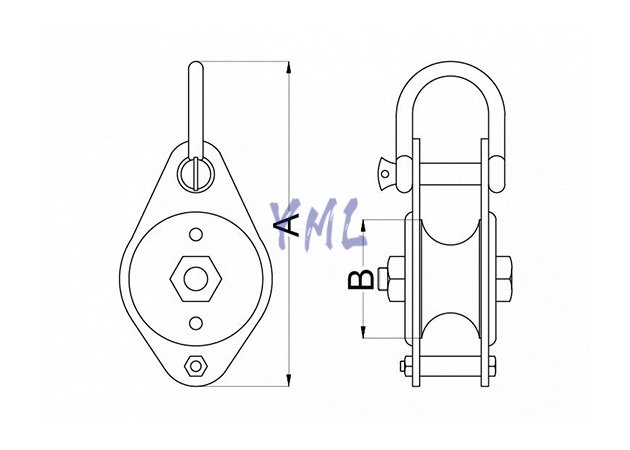

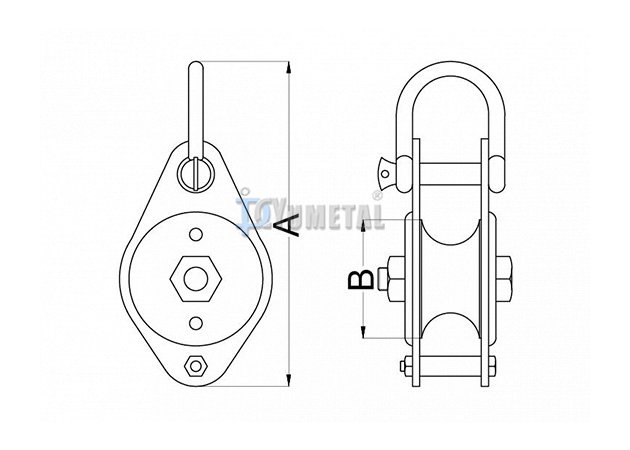

| Art. No. | Size | Rope | B | A | trmen | Plate Thickness | WLL | Weight | |
| mm | inch | mm | mm | mm | shackle | mm | ton | kg/pc | |
| BL71-050 | 50 | 2" | 6-8 | 50 | 100 | 8 | 2 | 0.25 | 0.40 |
| BL71-075 | 75 | 3" | 10-12 | 75 | 175 | 12 | 2.5 | 0.75 | 1.00 |
| BL71-100 | 100 | 4" | 12-14 | 100 | 200 | 14 | 3 | 1 | 1.72 |
| BL71-125 | 125 | 5'' | 14-16 | 125 | 240 | 16 | 3.5 | 1.5 | 3.20 |
