CH09

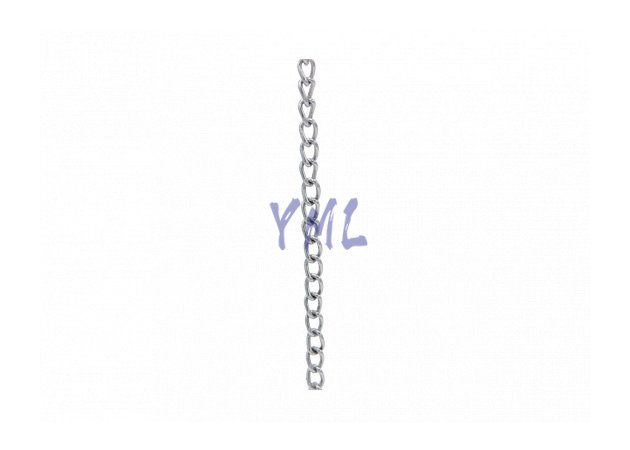

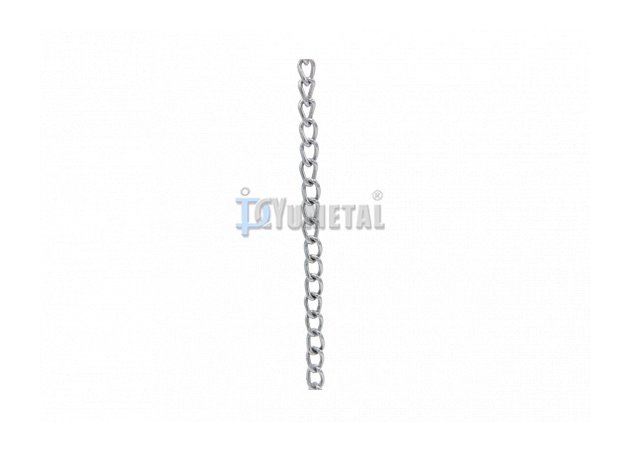

CH09 DIN5685A Machine Chain Twist Link

Technical parameters

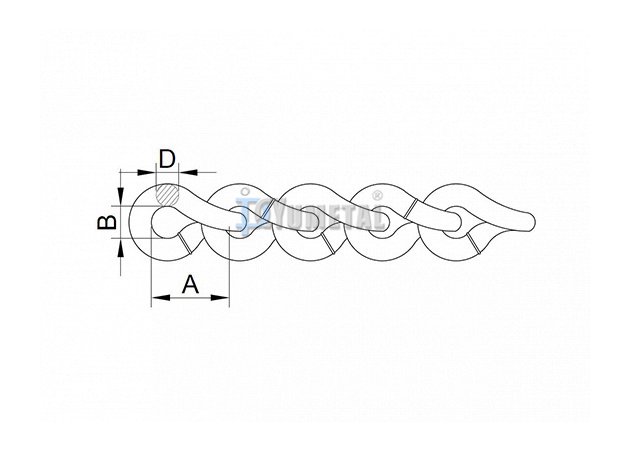

Art No.Trade Size DiameterInside Length Inside Width Working Load Limit(max) Min Breaking Load


DAB



mmNo.mminmminchmminchkglbknlb
CH09-3.03.0 43.0 0.120 13.1 0.52 4.3 0.17 932053.64 820
CH09-3.43.4 33.4 0.135 14.2 0.56 5.1 0.20 1162554.53 1020
CH09-3.83.8 23.8 0.148 14.7 0.58 5.3 0.21 1413105.51 1240
CH09-4.14.1 14.1 0.162 15.0 0.596.1 0.24 1683706.58 1480
CH09-4.54.5 1/04.5 0.177 17.2 0.68 6.6 0.26 2004407.82 1760
CH09-4.94.9 2/04.9 0.192 18.5 0.73 7.1 0.28 2365209.24 2080
CH09-5.35.3 3/05.3 0.207 20.3 0.80 7.9 0.31 27460510.76 2420
CH09-5.55.5 4/05.5 0.218 22.5 0.89 8.1 0.32 30467011.91 2680
CH09-6.46.4 5/06.4 0.250 25.3 1.00 9.4 0.37 40088015.64 3520
