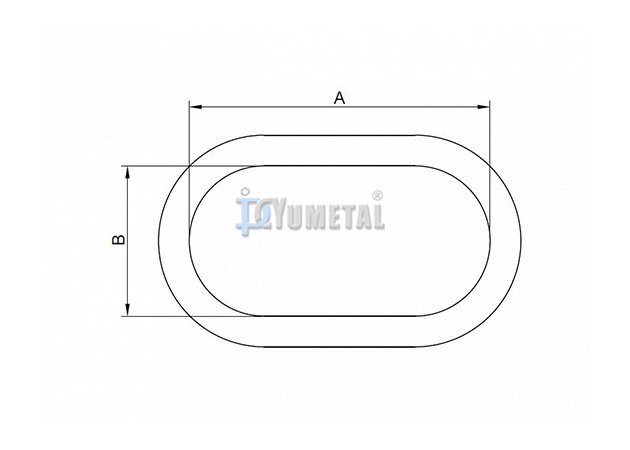

| Art No. | Size inch | WLL ton | Dimensions (mm) | Weight kg/pc | ||
| A | B | D | ||||
| RN01-1/2 | 1/2 | 3.4 | 127 | 63.5 | 13 | 0.36 |
| RN01-5/8 | 5/8 | 4 | 152 | 76 | 16 | 0.70 |
| RN01-3/4 | 3/4 | 5.6 | 140 | 70 | 19 | 0.93 |
| RN01-7/8 | 7/8 | 6.9 | 160 | 90 | 22 | 1.50 |
| RN01-1 | 1 | 11.8 | 178 | 89 | 25 | 2.10 |
| RN01-1-1/4 | 1-1/4 | 17.7 | 222 | 111 | 32 | 4.24 |
| RN01-1-1/2 | 1-1/2 | 27.7 | 267 | 135 | 38 | 7.17 |
| RN01-1-3/4 | 1-3/4 | 38.5 | 305 | 152 | 45 | 11.55 |
| RN01-2 | 2 | 46.5 | 355 | 178 | 51 | 17.20 |
| RN01-2-1/4 | 2-1/4 | 64.9 | 406 | 203 | 57 | 24.50 |
| RN01-2-1/2 | 2-1/2 | 72.6 | 406 | 203 | 63.5 | 30.90 |
| RN01-2-3/4 | 2-3/4 | 98.4 | 406 | 241 | 70 | 39.50 |
| RN01-3 | 3 | 103 | 457 | 228 | 76 | 50.34 |
| RN01-3-1/4 | 3-1/4 | 119 | 508 | 254 | 82.5 | 65.68 |
| RN01-3-1/2 | 3-1/2 | 126 | 610 | 305 | 89 | 90.24 |
| RN01-3-3/4 | 3-3/4 | 152 | 508 | 254 | 95 | 89.27 |
| RN01-4 | 4 | 169 | 508 | 254 | 102 | 103.43 |
