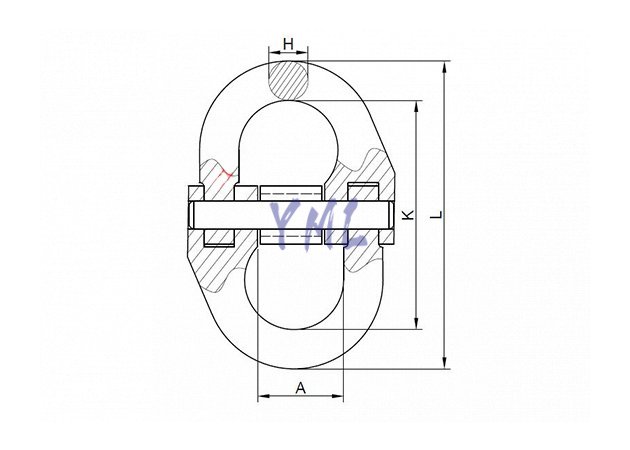

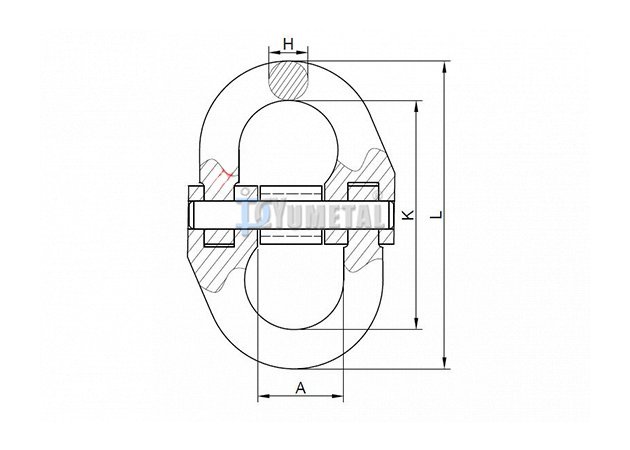

| Art No. | Size inch | WLL lbs | Breaking Load | Dimensions(mm) | Weight lb/pc | |||
| lbs | A | L | K | H | ||||
| CN02-1/4 | 1/4 | 3500 | 14000 | 16.50 | 67.00 | 51.00 | 8.00 | 0.28 |
| CN02-5/16 | 5/16 | 4500 | 18000 | 17.00 | 78.50 | 58.50 | 10.00 | 0.32 |
| CN02-3/8 | 3/8 | 7100 | 28400 | 22.00 | 87.60 | 63.60 | 12.00 | 0.73 |
| CN02-1/2 | 1/2 | 12000 | 48000 | 28.50 | 115.50 | 85.50 | 15.00 | 1.67 |
| CN02-5/8 | 5/8 | 18100 | 72400 | 33.00 | 143.00 | 106.00 | 18.50 | 2.86 |
| CN02-3/4 | 3/4 | 28300 | 113200 | 41.00 | 162.00 | 116.00 | 23.00 | 5.00 |
| CN02-7/8 | 7/8 | 34200 | 136800 | 50.50 | 188.50 | 136.50 | 26.00 | 7.50 |
| CN02-1 | 1 | 47700 | 190800 | 57.00 | 214.50 | 152.50 | 31.00 | 11.03 |
| CN02-1 1/4 | 1-1/4 | 72300 | 289200 | 65.00 | 265.00 | 188.70 | 38.00 | 20.38 |
