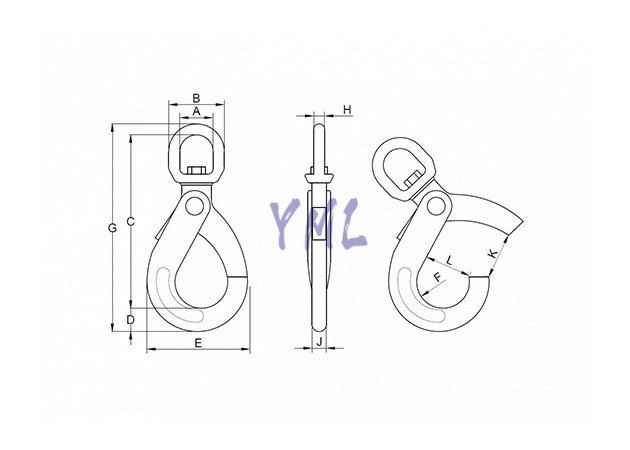

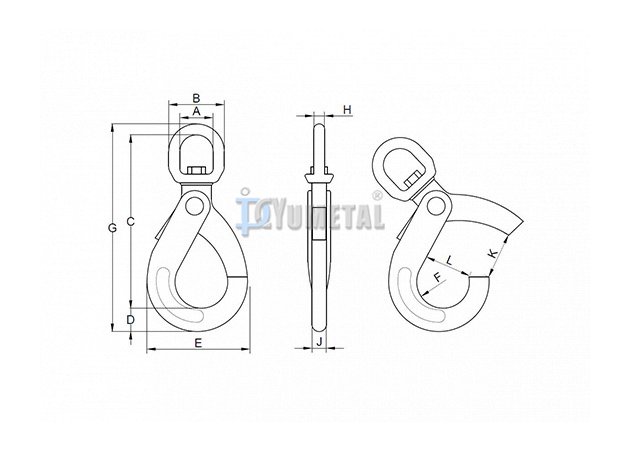

| Art No. | Size | WLL | Ultimate Load | Dimensions (inch) | Weight | ||||||||||
| inch | mm | lbs | ton | A | B | D | E | F | G | H | J | L | M | lb/pc | |
| GK14-06 | - | 6 | 2500 | 20000 | 1.50 | 1.32 | 0.79 | 2.60 | 0.67 | 7.45 | 0.50 | 0.63 | 1.13 | 6.16 | 1.26 |
| GK14-08 | 1/4"-5/16" | 7-8 | 4500 | 36000 | 1.75 | 1.59 | 1.10 | 3.50 | 0.87 | 9.35 | 0.63 | 0.81 | 1.44 | 7.62 | 2.62 |
| GK14-10 | 3/8" | 10 | 7100 | 56800 | 2.00 | 1.73 | 1.16 | 4.35 | 1.10 | 10.77 | 0.75 | 0.94 | 1.83 | 8.86 | 4.70 |
| GK14-13 | 1/2" | 13 | 12000 | 96000 | 2.50 | 2.38 | 1.66 | 5.45 | 1.26 | 13.88 | 1.00 | 1.16 | 2.19 | 11.22 | 8.64 |
| GK14-16 | 5/8" | 16 | 18100 | 144800 | 2.75 | 2.54 | 2.05 | 6.56 | 1.50 | 16.48 | 1.13 | 1.50 | 2.61 | 12.74 | 17.00 |
