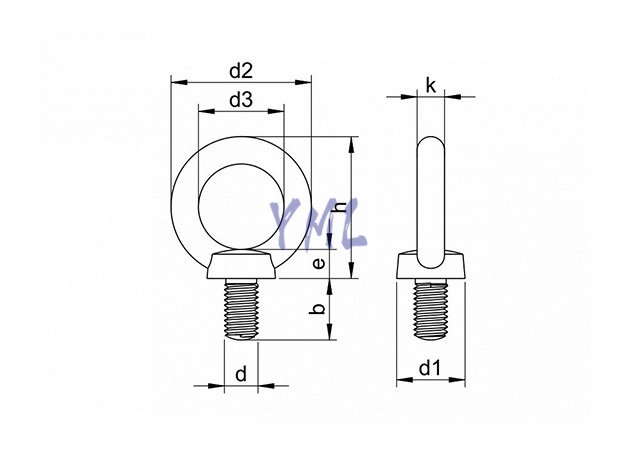

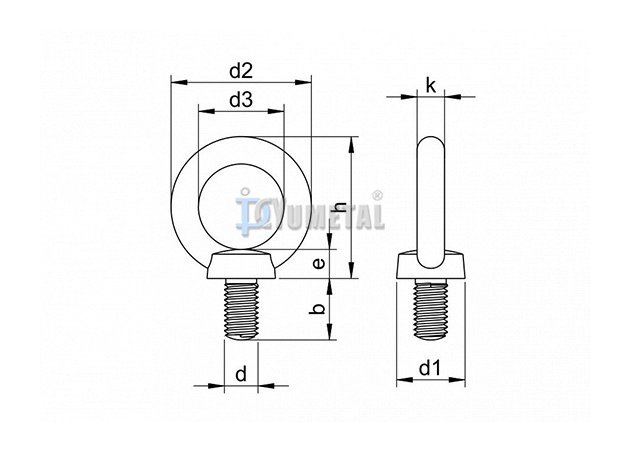

| Art No. | Size | WLL | Dimensions (mm) | Weight | ||||||
| mm | Ton | d1 | d2 | d3 | b | e | h | k | kg/pc | |
| EB01-06 | M6 | 0.07 | 20 | 36 | 20 | 13 | 6 | 36 | 6 | 0.06 |
| EB01-08 | M8 | 0.14 | 20 | 36 | 20 | 13 | 6 | 36 | 8 | 0.06 |
| EB01-10 | M10 | 0.23 | 25 | 45 | 25 | 17 | 8 | 45 | 10 | 0.11 |
| EB01-12 | M12 | 0.34 | 30 | 54 | 30 | 20.5 | 10 | 53 | 12 | 0.18 |
| EB01-14 | M14 | 0.49 | 35 | 63 | 35 | 27 | 12 | 60 | 14 | 0.28 |
| EB01-16 | M16 | 0.7 | 35 | 63 | 35 | 27 | 12 | 62 | 14 | 0.285 |
| EB01-18 | M18 | 0.9 | 40 | 72 | 40 | 30 | 14 | 71 | 16 | 0.405 |
| EB01-20 | M20 | 1.2 | 40 | 72 | 40 | 30 | 14 | 71 | 16 | 0.45 |
| EB01-22 | M22 | 1.5 | 45 | 81 | 45 | 35 | 14 | 80 | 18 | 0.67 |
| EB01-24 | M24 | 1.8 | 50 | 90 | 50 | 36 | 18 | 90 | 20 | 0.87 |
| EB01-27 | M27 | 2.5 | 50 | 90 | 50 | 36 | 18 | 90 | 20 | 1.22 |
| EB01-30 | M30 | 3.6 | 65 | 108 | 60 | 45 | 22 | 109 | 24 | 1.66 |
| EB01-33 | M33 | 4.3 | 65 | 108 | 60 | 45 | 22 | 110 | 24 | 2.16 |
| EB01-36 | M36 | 5.1 | 75 | 126 | 70 | 54 | 26 | 128 | 28 | 2.65 |
| EB01-39 | M39 | 6.1 | 75 | 126 | 70 | 54 | 26 | 130 | 28 | 3.34 |
| EB01-42 | M42 | 7 | 85 | 144 | 80 | 63 | 30 | 147 | 32 | 4.03 |
| EB01-45 | M45 | 8 | 85 | 144 | 80 | 63 | 35 | 150 | 32 | 5.21 |
| EB01-48 | M48 | 8.6 | 100 | 166 | 90 | 68 | 35 | 168 | 38 | 6.38 |
| EB01-52 | M52 | 9.9 | 100 | 166 | 90 | 70 | 35 | 168 | 38 | 6.60 |
| EB01-56 | M56 | 11.5 | 110 | 184 | 100 | 78 | 38 | 187 | 42 | 8.80 |
| EB01-64 | M64 | 16 | 120 | 206 | 110 | 90 | 42 | 208 | 48 | 12.40 |
| EB01-72 | M72 | 21 | 150 | 260 | 140 | 100 | 50 | 260 | 60 | 23.30 |
| EB01-80 | M80 | 28 | 170 | 296 | 160 | 112 | 55 | 298 | 68 | 34.20 |
| EB01-100 | M100 | 40 | 190 | 330 | 180 | 130 | 60 | 330 | 75 | 49.10 |
