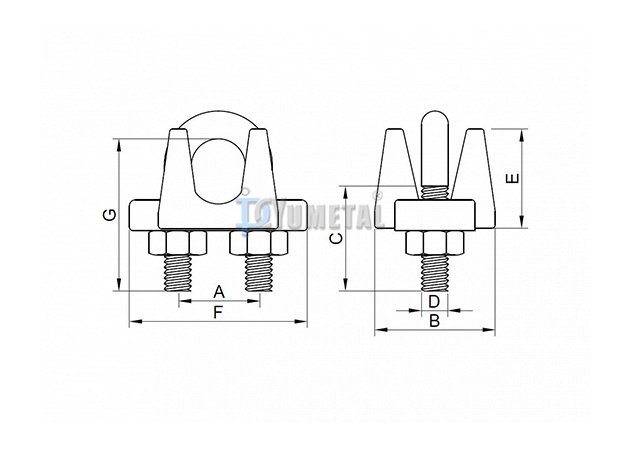

| Art No. | Size | Dimensions (mm) | Weight | ||||||
| mm | A | B | C | D | E | F | G | kg/pc | |
| CL06-06 | 6 | 12 | 17 | 14 | 5 | 14 | 23 | 24 | 0.025 |
| CL06-08 | 8 | 15 | 21 | 16 | 6 | 17 | 28 | 30 | 0.045 |
| CL06-10 | 10 | 19 | 28 | 20 | 8 | 21 | 38 | 37 | 0.090 |
| CL06-12 | 12 | 24 | 34 | 25 | 10 | 27 | 45 | 47 | 0.180 |
| CL06-15 | 15 | 29 | 40 | 30 | 12 | 32 | 52 | 56 | 0.280 |
| CL06-20 | 20 | 36 | 47 | 36 | 14 | 38 | 62 | 70 | 0.470 |
| CL06-22 | 22 | 40 | 52 | 39 | 16 | 43 | 69 | 77 | 0.620 |
| CL06-25 | 25 | 43 | 56 | 44 | 18 | 50 | 76 | 85 | 0.850 |
| CL06-28 | 28 | 48 | 62 | 48 | 20 | 57 | 85 | 95 | 1.200 |
| CL06-32 | 32 | 55 | 67 | 51 | 22 | 61 | 93 | 108 | 1.570 |
| CL06-40 | 40 | 64 | 81 | 62 | 24 | 73 | 111 | 120 | 2.610 |
| CL06-45 | 45 | 72 | 88 | 70 | 27 | 86 | 123 | 137 | 3.630 |
| CL06-50 | 50 | 80 | 95 | 80 | 30 | 95 | 135 | 154 | 4.800 |
