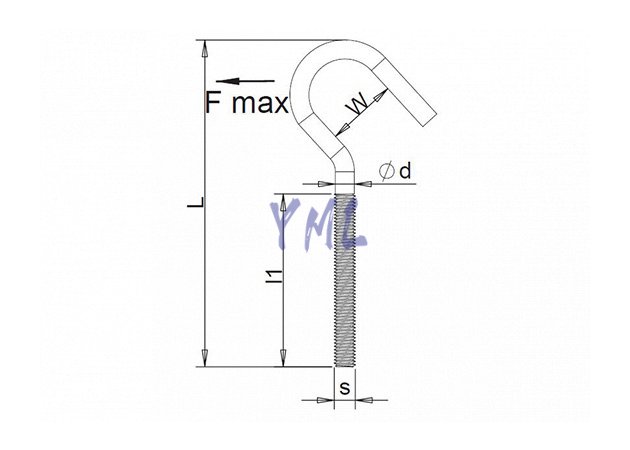

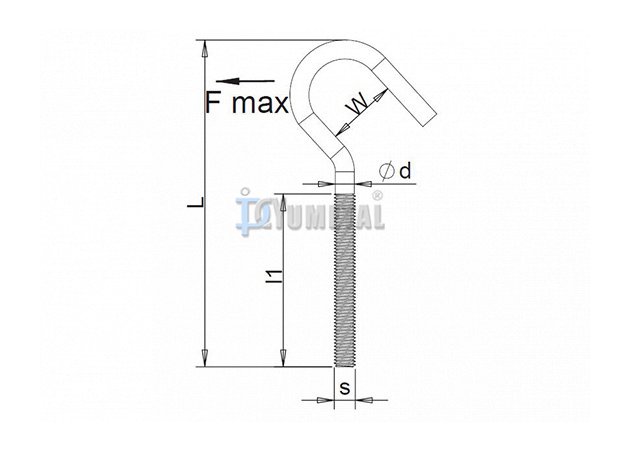

| Art No. | Thread | L | W | l1 | d | F max | Weight |
| mm | mm | mm | mm | mm | kg | kg/100pcs | |
| SCK12-M5x70mm | M5 | 70 | 8 | 50 | 4.2 | 25 | 1.10 |
| SCK12-M6x65mm | M6 | 65 | 10 | 40 | 5.0 | 50 | 1.60 |
| SCK12-M6x85mm | M6 | 85 | 10 | 60 | 5.0 | 50 | 1.90 |
| SCK12-M6x105mm | M6 | 105 | 10 | 80 | 5.0 | 50 | 2.25 |
| SCK12-M8x75mm | M8 | 75 | 12 | 40 | 6.8 | 100 | 3.20 |
| SCK12-M8x95mm | M8 | 95 | 12 | 60 | 6.8 | 100 | 3.80 |
| SCK12-M8x115mm | M8 | 115 | 12 | 80 | 6.8 | 100 | 4.50 |
| SCK12-M8x155mm | M8 | 155 | 12 | 120 | 6.8 | 100 | 5.30 |
| SCK12-M10x105mm | M10 | 105 | 15 | 60 | 6.8 | 200 | 6.80 |
| SCK12-M10x145mm | M10 | 145 | 15 | 100 | 6.8 | 200 | 8.80 |
