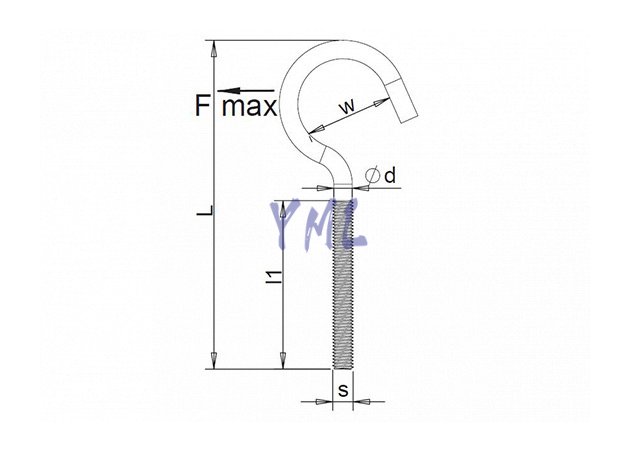

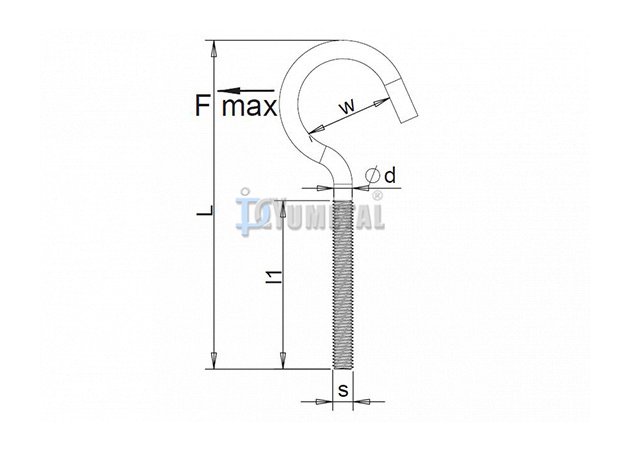

| Art No. | Thread | L | W | l1 | d | F max | Weight |
| mm | mm | mm | mm | mm | kg | kg/100pcs | |
| SCK11M-M4X40 | M4 | 40 | 13 | 17 | 3.2 | 12.5 | 0.46 |
| SCK11M-M4X50 | M4 | 50 | 13 | 25 | 3.2 | 12.5 | 0.52 |
| SCK11M-M5X50 | M5 | 50 | 16 | 23 | 4.2 | 20 | 0.95 |
| SCK11M-M5X60 | M5 | 60 | 16 | 30 | 4.2 | 20 | 1.05 |
| SCK11M-M6X50 | M6 | 50 | 18 | 20 | 5.0 | 40 | 1.35 |
| SCK11M-M6X60 | M6 | 60 | 18 | 30 | 5.0 | 40 | 1.50 |
| SCK11M-M6X80 | M6 | 80 | 18 | 50 | 5.0 | 40 | 1.80 |
| SCK11M-M8X60 | M8 | 60 | 22 | 20 | 6.8 | 80 | 2.90 |
| SCK11M-M8X80 | M8 | 80 | 22 | 40 | 6.8 | 80 | 3.50 |
| SCK11M-M8X100 | M8 | 100 | 22 | 60 | 6.8 | 80 | 4.10 |
