CH08

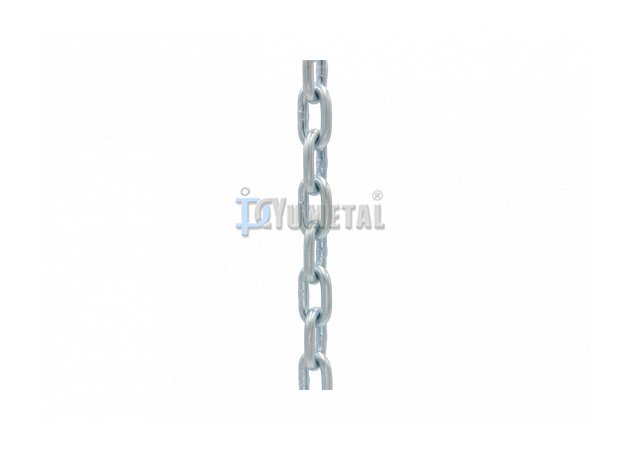

CH08 NACM1990 Machine Chain Straight Link

Technical parameters

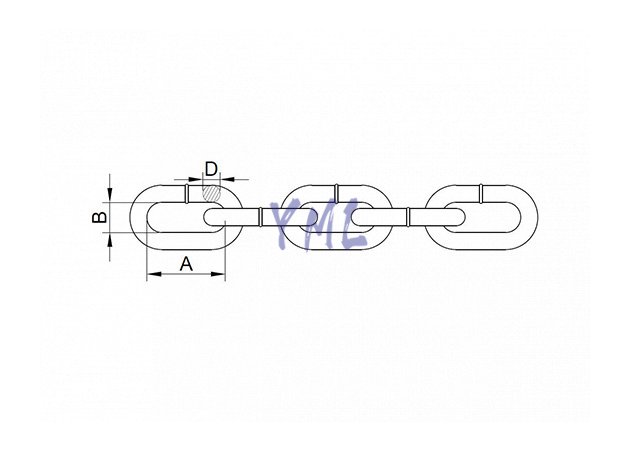

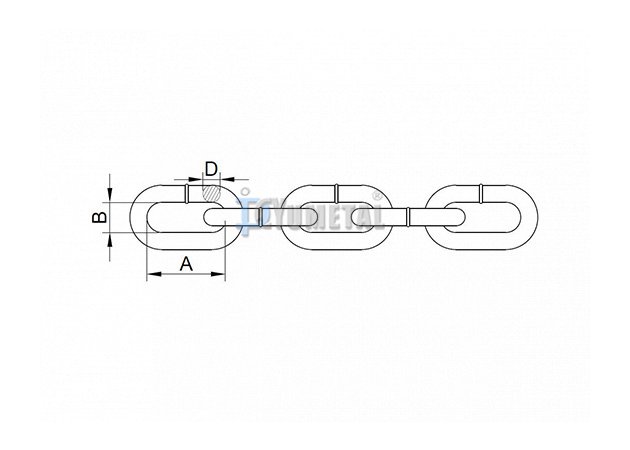

Art No.Trade Size DiameterInside Length Inside Width Working Load Limit(max)Proof  Test(min) Min Breaking Load


DAB





mmNo.mminmminchmminchkglbknlbknlb
CH08-3.03.0 43.0 0.120 14.0 0.55 5.3 0.21 982151.91 4303.82 860
CH08-3.43.4 33.4 0.135 15.0 0.59 6.1 0.24 1222702.40 5404.80 1080
CH08-3.83.8 23.8 0.148 15.5 0.61 6.6 0.26 1473252.89 6505.78 1300
CH08-4.14.1 14.1 0.162 16.0 0.637.1 0.28 1773903.47 7806.93 1560
CH08-4.54.5 1/04.5 0.177 18.8 0.74 7.9 0.31 2114654.14 9308.27 1860
CH08-4.94.9 2/04.9 0.192 19.8 0.78 8.6 0.34 2475454.85 10909.69 2180
CH08-5.35.3 3/05.3 0.207 21.6 0.85 9.1 0.36 2886355.65 127011.29 2540
CH08-5.55.5 4/05.5 0.218 25.1 0.99 9.6 0.38 3187006.23 140012.44 2800
CH08-6.46.4 5/06.4 0.250 27.2 1.07 11.2 0.44 4209258.23 185016.44 3700
