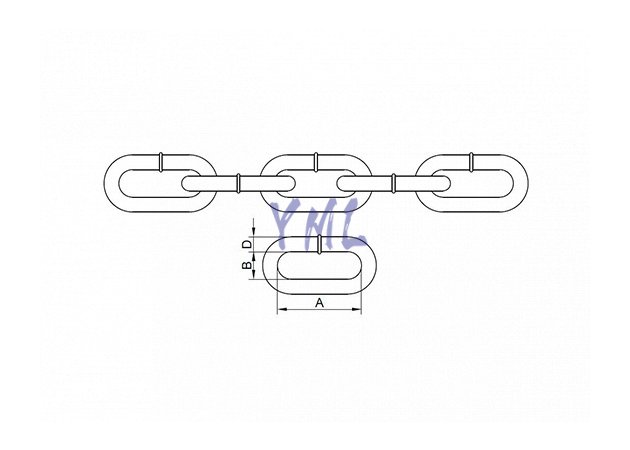

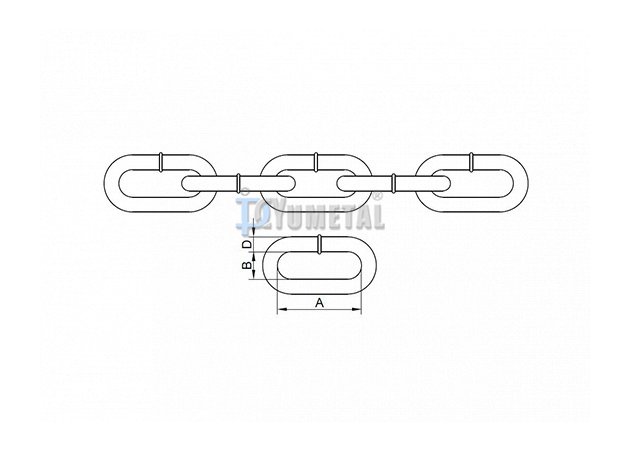

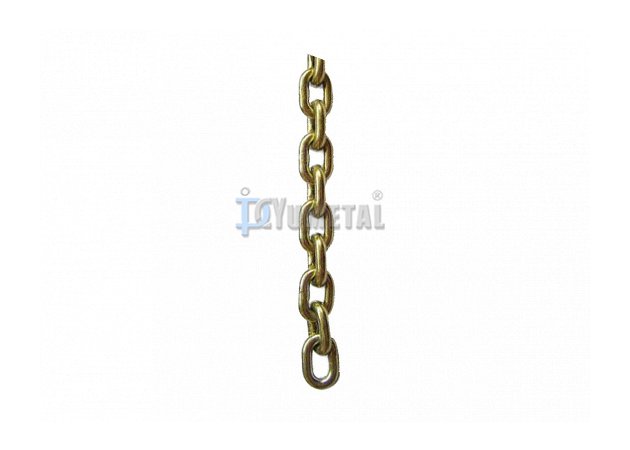

CH03 NACM96/2003 Standard Link Chain,G30/G43/G70

Technical parameters
Art No.Normal SizeMaterial DiameterWorking Load Limit(max)Proof  Test(min)Min Breaking LoadInside Length (max)Inside Width(min)
mminchmminchkglbknlbknlbmminchmminch
Proof Coil Chain NACM1996/2003(G30)
CH03-04G304.0 1/8"4.0 0.156 1804003.68007.20 160023.9 0.94 6.4 0.25
CH03-5.5G305.5 3/16"5.5 0.217 3658007.2150014.4 320024.8 0.98 7.7 0.30
CH03-07G307.0 1/4"7.0 0.276 580130011.6260023.2 520031.5 1.24 9.8 0.38
CH03-08G308.0 5/16"8.4 0.331 860190016.9380033.8 760032.8 1.29 11.2 0.44
CH03-10G3010.0 3/8"10.0 0.394 1200265023.5530047.2 1060035.0 1.38 14.0 0.55
CH03-11.9G3011.9 7/16"11.9 0.488 1680370032.9740065.8 1480041.5 1.64 16.6 0.65
CH03-13G3013.0 1/2"13.0 0.512 2030450040.0 900080.0 1800045.6 1.79 18.2 0.72
CH03-16G3016.0 5/8"16.0 0.630 3130690061.313800122.8 2760056.0 2.20 20.0 0.79
CH03-20G3020.0 3/4"20.0 0.787 48001050094.321200188.6 4240070.0 2.76 25.0 0.98
CH03-22G3022.0 7/8"22.0 0.865 581012800114.125600228.2 5120077.0 3.03 27.5 1.08
CH03-25G3025.0 1"26.0 1.020 814017900159.135800318.2 7160090.9 3.58 31.7 1.25
High Test Chain NACM1996/2003(G43)
CH03-07G437.0 1/4"7.0 0.2761180280017.3 390034.6 780031.5 1.24 9.8 0.38
CH03-8.7G438.7 5/16"8.7 0.3431770390026.0 585052.0 1170032.8 1.29 11.2 0.44
CH03-10G4310.0 3/8"10.3 0.4062450540036.0 810072.0 1620035.0 1.38 14.0 0.55
CH03-13G4313.0 1/2"13.5 0.5314170920061.3 13800122.6 2760045.5 1.79 18.2 0.72
Transport Chain NACM1996/2003(G70)
CH03-07G707.0 1/4"7.0 0.2811430315028.0 630056.0 1260031.8 1.24 9.8 0.38
CH03-8.7G708.7 5/16"8.7 0.3432130470041.8 940083.6 1880032.8 1.29 11.2 0.44
CH03-11.9G7011.9 3/8"10.3 0.4062990660058.7 13200117.4 2640035.0 1.38 14.0 0.55
CH03-13G7013.0 1/2"13.5 0.531513011300100.4 22600200.8 4520045.5 1.79 18.2 0.72
