CH02
CH02

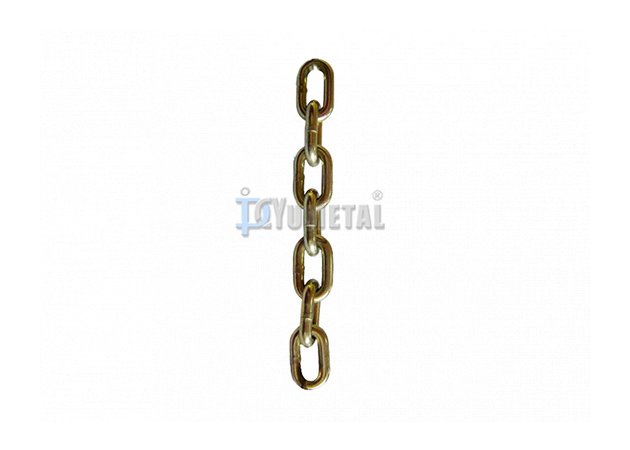

CH02 NACM84/90 Standard Link Chain,G30/G43/G70

Technical parameters

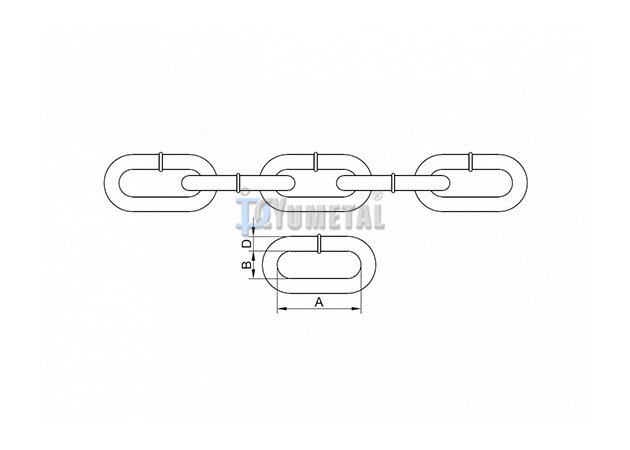

Art No.Normal SizeMaterial DiameterWorking Load Limit(max)Proof  Test(min)Min Breaking LoadInside Length (max)Inside Width(min)
mminchmminchkglbknlbknlbmminchmminch
Proof Coil Chain NACM1990(G30)
CH02-04G304.0 1/8"4.0 0.156 1703753.68007.10 160023.9 0.94 6.4 0.25
CH02-5.5G305.5 3/16"5.5 0.217 3658007.2160014.3 320024.8 0.98 7.7 0.30
CH02-07G307.0 1/4"7.0 0.276 580130011.6260023.1 520031.5 1.24 9.8 0.38
CH02-08G308.0 5/16"8.0 0.315 860190015.1340030.2 680032.8 1.29 11.2 0.44
CH02-10G3010.0 3/8"10.0 0.394 1200265023.6530047.1 1060035.0 1.38 14.0 0.55
CH02-13G3013.0 1/2"13.0 0.512 2030450039.8895079.6 1790045.5 1.79 18.2 0.72
CH02-16G3016.0 5/8"16.0 0.630 3130690060.313600120.6 2720056.0 2.20 20.0 0.79
CH02-20G3020.0 3/4"20.0 0.787 48001060094.321200188.5 4240070.0 2.76 25.0 0.98
CH02-22G3022.0 7/8"22.0 0.866 581012800114.125600228.1 5120077.0 3.03 27.5 1.08
CH02-25G3025.0 1"26.0 1.020 814017900159.135800318.2 7160090.9 3.58 31.7 1.25
High Test Chain NACM1990(G43)
CH02-07G437.0 1/4"7.0 0.2761180260016.6375033.1750031.5 1.24 9.8 0.38
CH02-08G438.0 5/16"8.0 0.3151770390021.6490043.2970032.8 1.29 11.2 0.44
CH02-10G4310.0 3/8"10.0 0.3942450540033.8760067.612520035.0 1.38 14.0 0.55
CH02-13G4313.0 1/2"13.0 0.5124170920057.112900114.22570045.5 1.79 18.2 0.72
Transport Chain NACM1990(G70)
CH02-07G707.0 1/4"7.0 0.2761430315027.0 610053.9 1210031.5 1.24 9.8 0.38
CH02-8.7G708.7 5/16"8.7 0.3432130470041.6 940083.5 1880033.5 1.32 12.2 0.48
CH02-10G7010.0 3/8"10.0 0.3942990660055.0 12400110.0 2470035.0 1.38 14.0 0.55
CH02-13G7013.0 1/2"13.0 0.51251301130092.9 20900185.8 4180045.5 1.79 18.2 0.72
