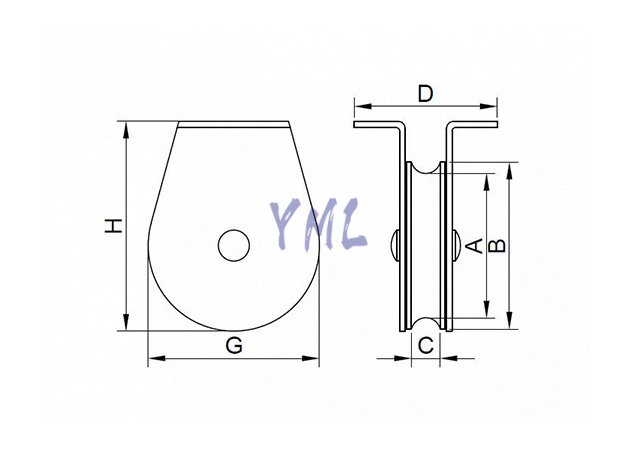

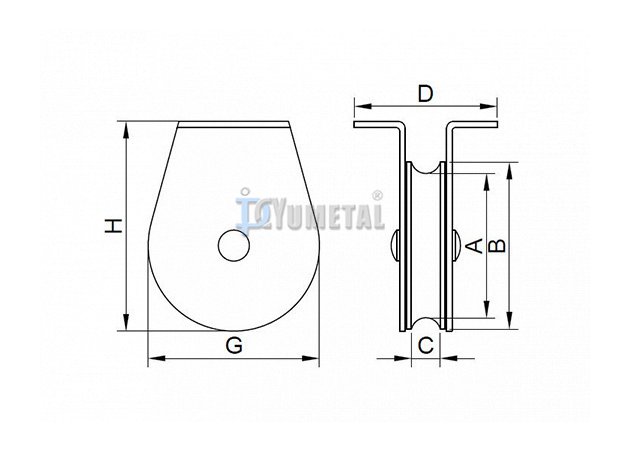

| Art. No. | Size | Rope | D | B | G | Plate Thickness | WLL | Weight | |
| mm | inch | mm | mm | mm | mm | mm | kgs | kg/pc | |
| BL23-050 | 50 | 2" | 5 | 51 | 50 | 54 | 1.5 | 270 | 0.20 |
| BL23-075 | 75 | 3" | 6 | 51 | 75 | 80 | 2 | 360 | 0.50 |
| BL23-090 | 90 | 3-1/2" | 8 | 83 | 90 | 96 | 2.5 | 700 | 0.80 |
| BL23-100 | 100 | 4" | 10 | 90 | 100 | 108 | 3 | 770 | 1.00 |
| BL23-125 | 125 | 5" | 10 | 90 | 125 | 151 | 4 | 830 | 2.10 |
