FE01

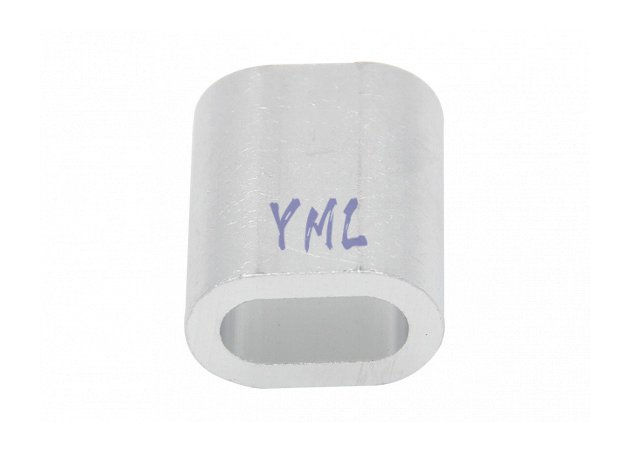

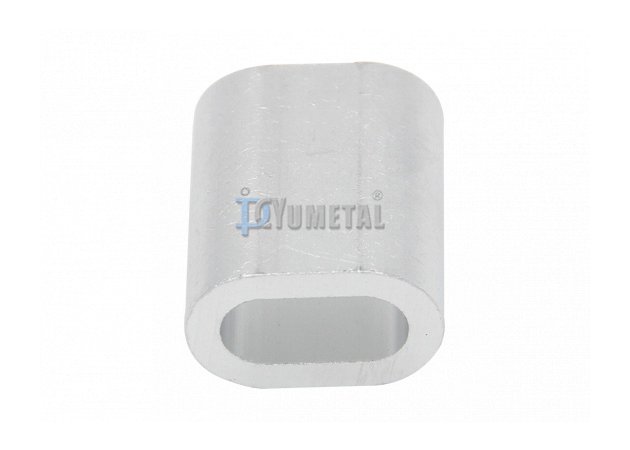

FE01 DIN3093 Aluminium Ferrules

Inquiry Now Add to cart

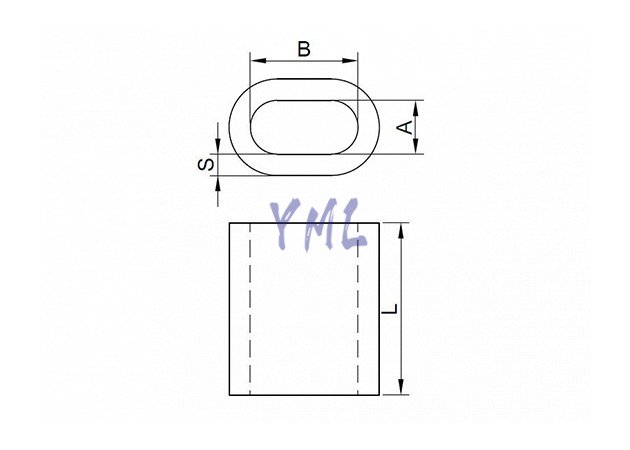

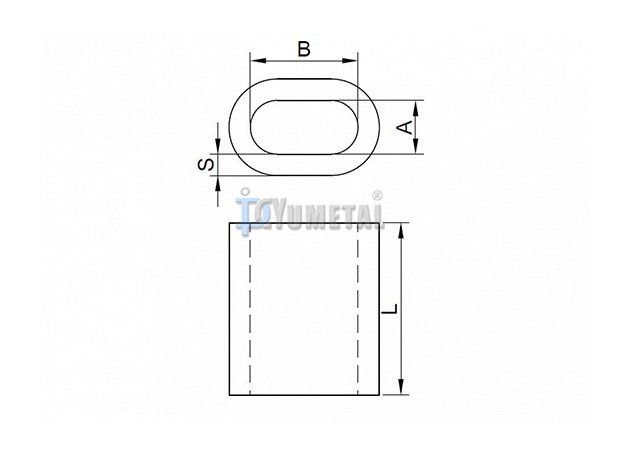

Technical parameters

Art No.	Size	A	B	S	L	Weight
Art No.	mm	mm	mm	mm	mm	kg/1000pcs
FE01-01	1	1.2	2.4	0.65	5	0.10
FE01-1.5	1.5	1.7	3.4	0.75	6	0.21
FE01-02	2	2.2	4.4	0.85	7	0.24
FE01-2.5	2.5	2.7	5.4	1.05	9	0.50
FE01-03	3	3.3	6.6	1.25	11	0.84
FE01-3.5	3.5	3.8	7.6	1.5	13	1.32
FE01-04	4	4.4	8.8	1.7	14	1.81
FE01-4.5	4.5	4.9	9.8	1.9	16	2.61
FE01-05	5	5.5	11.0	2.1	18	3.57
FE01-06	6	6.6	13.2	2.5	21	5.86
FE01-6.5	6.5	7.2	14.4	2.7	23	7.85
FE01-07	7	7.8	15.6	2.9	25	9.53
FE01-08	8	8.8	17.6	3.3	28	14.1
FE01-09	9	9.9	19.8	3.7	32	20.3
FE01-10	10	10.9	21.8	4.1	35	26.5
FE01-11	11	12.1	24.2	4.5	39	35.8
FE01-12	12	13.2	26.4	4.9	42	45.6
FE01-13	13	14.2	28.4	5.4	46	60.2
FE01-14	14	15.3	30.6	5.8	49	75.8
FE01-16	16	17.5	35.0	6.7	56	116
FE01-18	18	19.6	39.2	7.6	63	161
FE01-20	20	21.7	43.4	8.4	70	222
FE01-22	22	24.3	48.6	9.2	77	291
FE01-24	24	26.4	52.8	10.0	84	381
FE01-26	26	28.5	57.0	10.9	91	466
FE01-28	28	31.0	62.0	11.7	98	666
FE01-30	30	33.1	66.2	12.5	105	745
FE01-32	32	35.2	70.4	13.4	112	907
FE01-34	34	37.8	75.6	14.2	119	1086
FE01-36	36	39.8	79.6	15.0	126	1270
FE01-38	38	41.9	83.8	15.8	133	1500
FE01-40	40	44.0	88.0	16.6	140	1720
FE01-42	42	46.2	92.4	17.5	147	2000
FE01-44	44	48.4	96.8	18.3	154	2300
FE01-46	46	50.6	101.2	19.2	161	2650
FE01-48	48	52.8	105.6	20.0	168	2980
FE01-50	50	55.0	110.0	20.8	175	3400
FE01-52	52	57.2	114.4	21.6	182	3860
FE01-54	54	59.4	118.8	22.5	189	4300
FE01-56	56	61.6	123.2	23.3	196	4800
FE01-58	58	63.8	127.6	24.2	203	5300
FE01-60	60	66.0	132.0	25.0	210	5880
