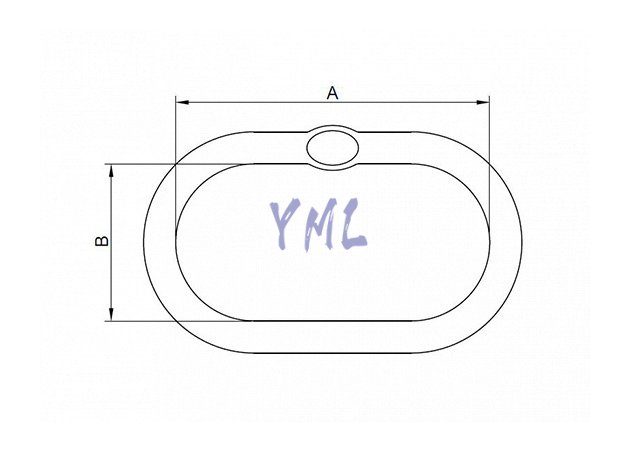

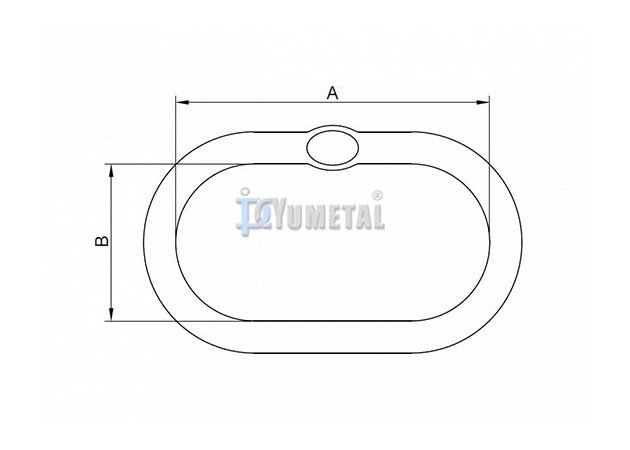

| Art No. | Size | WLL | Dimensions (mm) | G80 EN818-2 Chain | Weight | |||
| mm | ton | A | B | D | For 1 Leg mm | For 2 Leg mm | kg/pc | |
| RN02-06 | 76-8 | 1.6 | 110 | 60 | 13 | 7 | 6 | 0.34 |
| RN02-07 | 87-8 | 2.12 | 110 | 60 | 16 | 8 | 7 | 0.54 |
| RN02-08 | 108-8 | 3.15 | 135 | 75 | 18 | 10 | 8 | 0.82 |
| RN02-10 | 1310-8 | 5.3 | 160 | 90 | 22 | 13 | 10 | 1.50 |
| RN02-13 | 1613-8 | 8 | 180 | 100 | 26 | 16 | 13 | 2.32 |
| RN02-16 | 1816-8 | 11.2 | 200 | 110 | 32 | 18 | 16 | 3.95 |
| RN02-18 | 2018-8 | 14 | 260 | 140 | 36 | 20 | 18 | 6.34 |
| RN02-20 | 2220-8 | 17 | 300 | 160 | 40 | 22 | 20 | 8.96 |
| RN02-22 | 2622-8 | 21.2 | 340 | 180 | 45 | 26 | 22 | 12.80 |
| RN02-26 | 3226-8 | 31.5 | 350 | 190 | 50 | 32 | 26 | 16.55 |
| RN02-32 | 3632-8 | 45 | 400 | 200 | 56 | 36 | 32 | 23.28 |
| RN02-36 | 4036-8 | 56 | 430 | 220 | 63 | 40 | 36 | 32.00 |
| RN02-72 | 72mm | 63 | 460 | 250 | 72 | 45 | 40 | 45.76 |
| RN02-80 | 80mm | 85.46 | 500 | 270 | 80 | --- | 45 | 62.00 |
