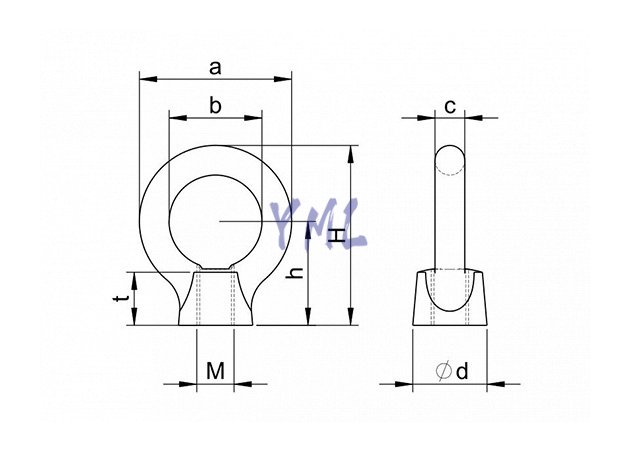

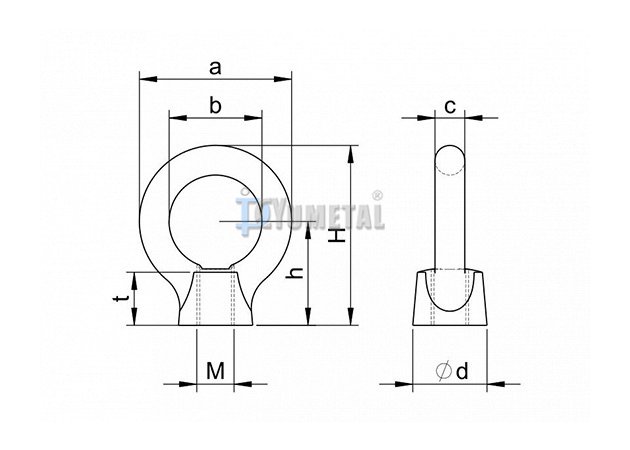

| Art No. | Size | WLL | Dimensions (mm) | |||||||
| mm | Ton | a | b | c | d | t | h | H | r | |
| EB04-08 | M8 | 0.079 | 32.60 | 20.00 | 6.30 | 16.00 | 12.00 | 23.00 | 39.30 | 8.00 |
| EB04-10 | M10 | 0.147 | 41.00 | 25.00 | 8.00 | 20.00 | 15.00 | 28.00 | 48.50 | 10.00 |
| EB04-12 | M12 | 0.216 | 50.00 | 30.00 | 10.00 | 25.00 | 19.00 | 36.00 | 61.00 | 12.00 |
| EB04-16 | M16 | 0.441 | 60.00 | 35.00 | 12.50 | 30.00 | 23.00 | 42.00 | 72.00 | 14.00 |
| EB04-20 | M20 | 0.618 | 72.00 | 40.00 | 16.00 | 35.00 | 28.00 | 50.00 | 86.00 | 16.00 |
| EB04-24 | M24 | 0.932 | 90.00 | 50.00 | 20.00 | 45.00 | 38.00 | 66.00 | 111.00 | 25.00 |
| EB04-30 | M30 | 1.470 | 110.00 | 60.00 | 25.00 | 60.00 | 46.00 | 80.00 | 135.00 | 30.00 |
| EB04-36 | M36 | 2.260 | 133.00 | 70.00 | 31.50 | 70.00 | 55.00 | 95.00 | 161.50 | 35.00 |
