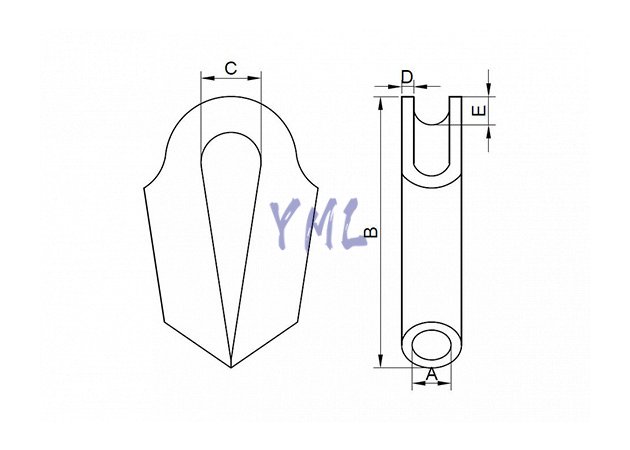

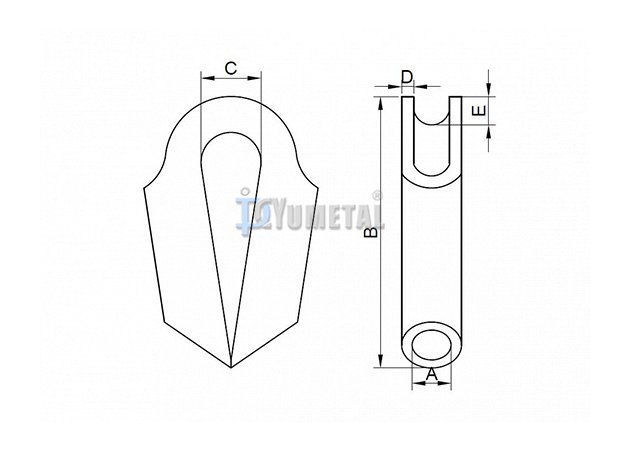

| Art No. | Size | Dimensions (mm) | Weight | |||||
| A | B | C | D | E | Wire Max | kg/pc | ||
| TH11-12 | G212 | 12.00 | 90.00 | 23.00 | 4.00 | 8.00 | 10.00 | 0.25 |
| TH11-15 | G215 | 15.00 | 105.00 | 27.00 | 5.00 | 10.00 | 12.00 | 0.42 |
| TH11-17 | G217 | 17.00 | 115.00 | 27.00 | 4.00 | 10.00 | 14.00 | 0.50 |
| TH11-19 | G219 | 19.00 | 120.00 | 32.00 | 6.00 | 12.00 | 16.00 | 0.60 |
| TH11-22 | G222 | 22.00 | 140.00 | 35.00 | 6.00 | 15.00 | 18.00 | 0.75 |
| TH11-25 | G225 | 25.00 | 180.00 | 45.00 | 6.30 | 16.00 | 22.00 | 1.40 |
| TH11-28 | G228 | 28.00 | 180.00 | 45.00 | 7.00 | 16.00 | 24.00 | 1.75 |
| TH11-30 | G230 | 30.00 | 195.00 | 47.00 | 7.00 | 18.00 | 26.00 | 2.00 |
| TH11-35 | G235 | 35.00 | 215.00 | 60.00 | 7.00 | 22.00 | 32.00 | 2.40 |
| TH11-45 | G245 | 45.00 | 260.00 | 70.00 | 7.00 | 27.00 | 38.00 | 3.30 |
| TH11-55 | G255 | 55.00 | 298.00 | 85.00 | 7.00 | 32.00 | 51.00 | 5.50 |
