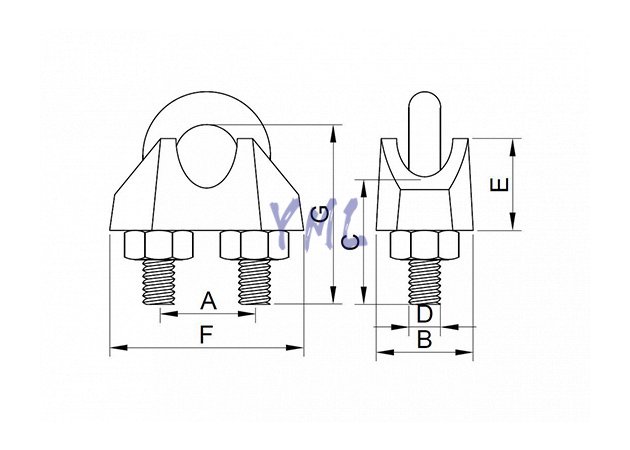

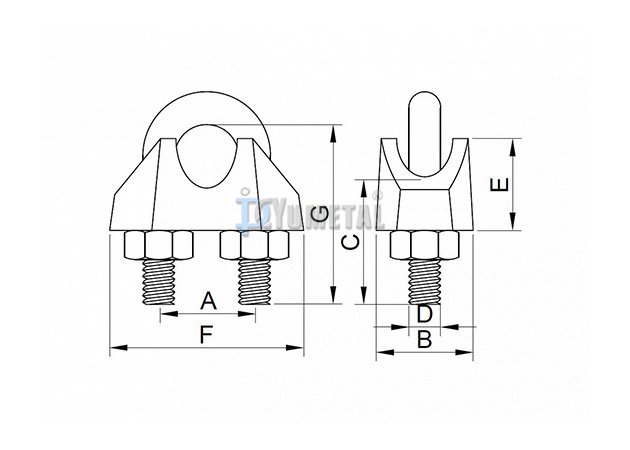

| Art No. | Size | Dimensions (mm) | Weight | ||||||
| mm | A | B | C | D | E | F | G | kg/100pcs | |
| CL05-06 | 6 | 13 | 14 | 16 | 6 | 11 | 25 | 24 | 0.030 |
| CL05-08 | 8 | 17 | 18 | 21 | 8 | 14 | 33 | 32 | 0.040 |
| CL05-09 | 9 | 20.5 | 23 | 25 | 10 | 18 | 40 | 38 | 0.085 |
| CL05-11 | 11 | 24 | 28 | 31 | 12 | 22 | 48 | 46 | 0.095 |
| CL05-13 | 13 | 28.5 | 32 | 36 | 14 | 25 | 56 | 54 | 0.280 |
| CL05-14 | 14 | 30 | 32 | 36 | 14 | 25 | 58 | 56 | 0.430 |
| CL05-16 | 16 | 32 | 32 | 38 | 14 | 25 | 60 | 60 | 0.490 |
| CL05-19 | 19 | 37 | 37 | 43 | 16 | 29 | 69 | 70 | 0.680 |
| CL05-21 | 21 | 41 | 41 | 49 | 18 | 32 | 77 | 78 | 1.170 |
| CL05-22 | 22 | 43 | 41 | 49 | 18 | 32 | 79 | 81 | 1.800 |
| CL05-26 | 26 | 49 | 46 | 56 | 20 | 36 | 89 | 92 | 2.130 |
| CL05-29 | 29 | 52 | 46 | 57 | 20 | 36 | 92 | 98 | 2.680 |
