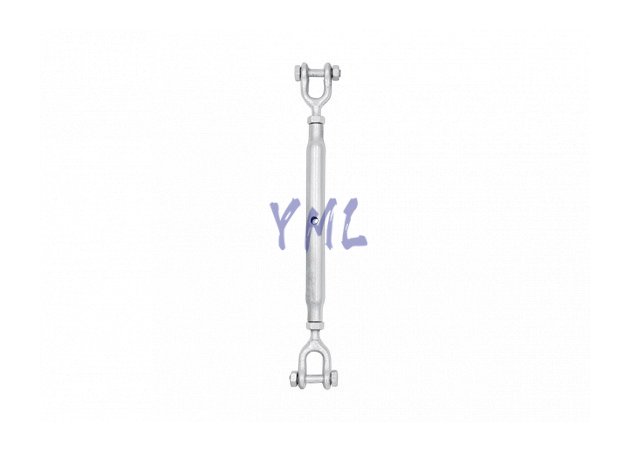

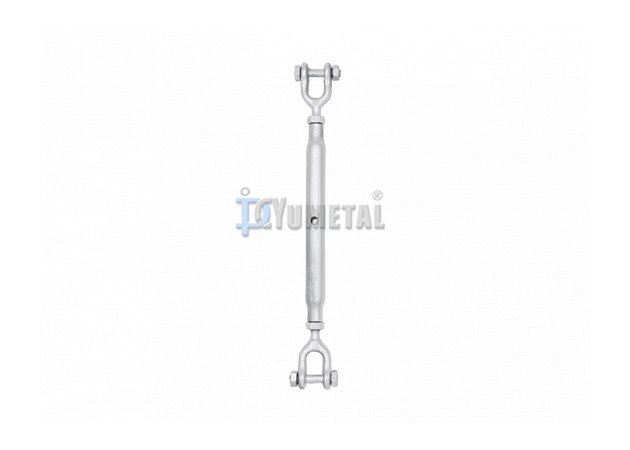

Rigging Screws Closed Body, Jaw-Jaw
Eye and Eye, Jaw and Eye are available
Rigging Screws Closed Body, Jaw-Jaw
Eye and Eye, Jaw and Eye are available

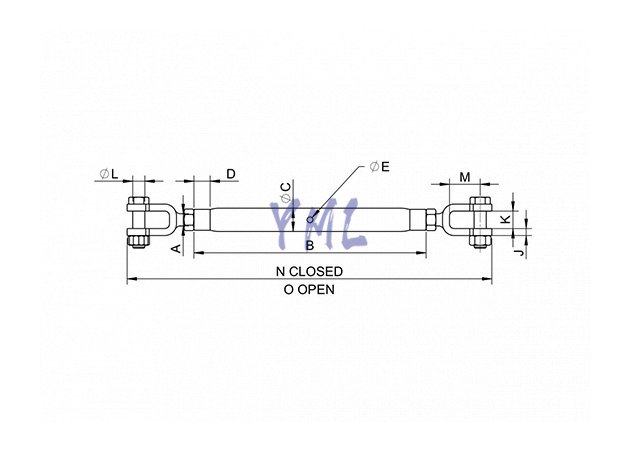

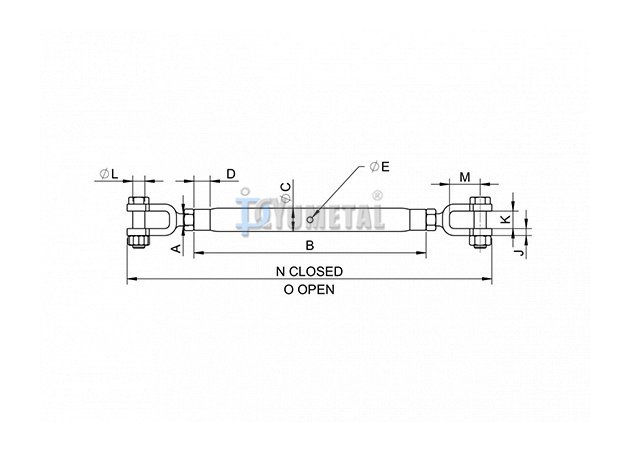

| Art No. | Size | Dimension(mm) | WLL | Weight | ||||||||||
| (mm) | A | B | C | D | E | J | K | L | M | N | O | (ton) | (kg/pc) | |
| TB22-06 | M6 | 6 | 102 | 15 | 13 | 6 | 6 | 9 | 5 | 21 | 178 | 254 | 0.1T | 0.16 |
| TB22-08 | M8 | 8 | 127 | 18 | 13 | 6 | 6 | 9 | 6.5 | 21 | 203 | 305 | 0.15T | 0.27 |
| TB22-10 | M10 | 10 | 152 | 21 | 16 | 8 | 8 | 11 | 8 | 21 | 235 | 349 | 0.38T | 0.45 |
| TB22-12 | M12 | 12 | 229 | 25 | 19 | 9 | 9 | 19 | 10 | 35 | 343 | 524 | 0.5T | 0.85 |
| TB22-16 | M16 | 16 | 229 | 27 | 22 | 11 | 9 | 22 | 12 | 51 | 361 | 550 | 0.76T | 1.45 |
| TB22-20 | M20 | 20 | 229 | 34 | 28 | 11 | 11 | 22 | 16 | 48 | 387 | 550 | 1.2T | 2.2 |
| TB22-22 | M22 | 22 | 305 | 38 | 32 | 13 | 13 | 25 | 20 | 60 | 476 | 702 | 1.7T | 3.5 |
| TB22-24 | M24 | 24 | 356 | 42 | 32 | 13 | 14 | 32 | 22 | 65 | 556 | 822 | 2.2T | 4.5 |
| TB22-27 | M27 | 27 | 356 | 45 | 41 | 13 | 14 | 32 | 22 | 65 | 559 | 822 | 2.8T | 5.6 |
| TB22-33 | M33 | 33 | 381 | 51 | 41 | 14 | 19 | 38 | 24 | 76 | 604 | 872 | 3.8T | 8.5 |
| TB22-36 | M36 | 36 | 381 | 54 | 44 | 16 | 19 | 38 | 27 | 76 | 610 | 872 | 5.2T | 9.5 |
| TB22-39 | M39 | 39 | 407 | 57 | 44 | 16 | 20 | 47 | 32 | 90 | 670 | 949 | 5.2T | 13 |
| TB22-45 | M45 | 45 | 407 | 70 | 51 | 17 | 25 | 51 | 36 | 111 | 705 | 959 | 7.2T | 17.5 |
| TB22-48 | M48 | 48 | 407 | 76 | 70 | 19 | 25 | 51 | 42 | 121 | 743 | 977 | 10T | 24 |
