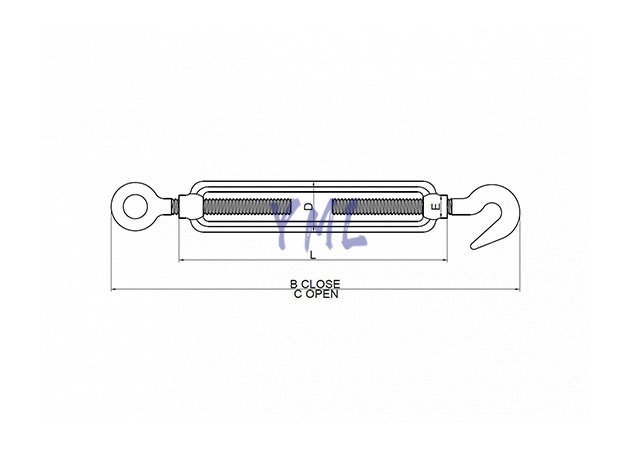

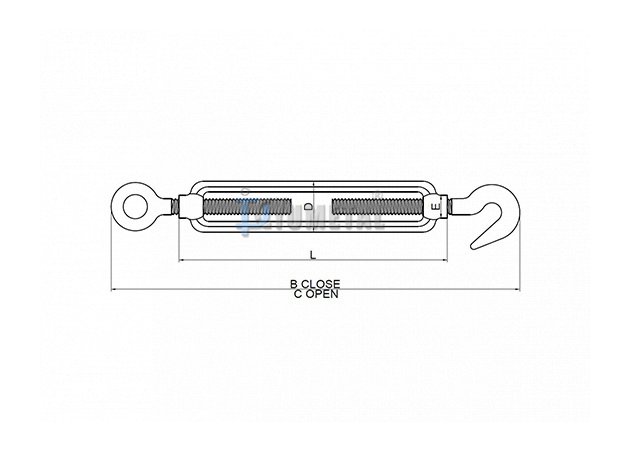

| Art No. | SWL | Dimensions (in.) | N.W | |||||
| kg | specification | B | V | D | E | L | kg | |
| TB16-06 | 100 | 6"*100mm | 145 | 215 | 12 | 10 | 100 | 0.16 |
| TB16-08 | 200 | 8"*125mm | 185 | 280 | 14 | 12 | 125 | 0.24 |
| TB16-10 | 300 | 10"*150mm | 210 | 325 | 16 | 14 | 150 | 0.39 |
| TB16-12 | 500 | 12"*200mm | 275 | 430 | 19 | 18 | 200 | 0.64 |
| TB16-16 | 1000 | 16"*250mm | 345 | 540 | 23 | 24 | 250 | 1.44 |
| TB16-20 | 1500 | 20"*300mm | 435 | 670 | 28 | 26 | 300 | 2.45 |
| TB16-22 | 2200 | 22"*320mm | 480 | 740 | 34 | 32 | 325 | 3.60 |
| TB16-24 | 3000 | 24"*350mm | 555 | 830 | 36 | 36 | 350 | 5.00 |
