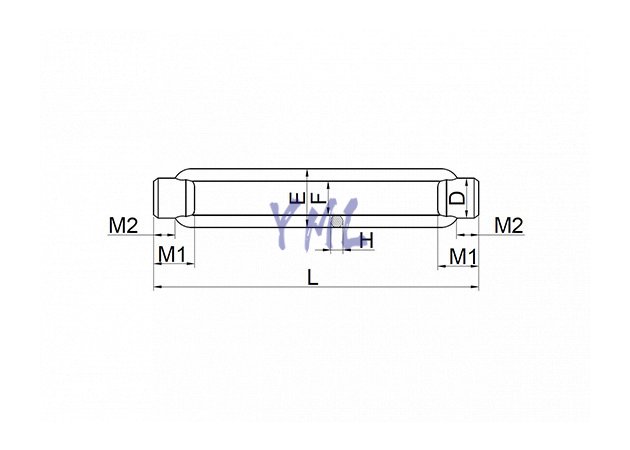

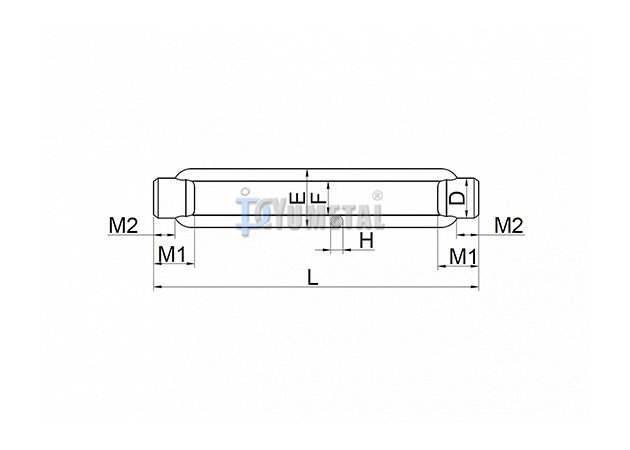

| Art No. | Size | Dimensions (mm) | ||||||
| mm | D | e | f | h | L | m1 | m2 | |
| TB11-06 | M6 | 12 | 19 | 9 | 6 | 110 | 12 | 6 |
| TB11-08 | M8 | 15 | 23 | 11 | 8 | 110 | 15 | 8 |
| TB11-10 | M10 | 18 | 30 | 14 | 9 | 125 | 18 | 9 |
| TB11-12 | M12 | 21 | 34 | 16 | 11 | 125 | 21 | 11 |
| TB11-16 | M16 | 27 | 42 | 20 | 14 | 170 | 27 | 14 |
| TB11-20 | M20 | 34 | 52 | 24 | 17 | 200 | 34 | 17 |
| TB11-24 | M24 | 39 | 60 | 28 | 20 | 255 | 39 | 20 |
| TB11-30 | M30 | 45 | 74 | 34 | 23 | 255 | 45 | 23 |
| TB11-36 | M36 | 55 | 86 | 40 | 28 | 295 | 55 | 28 |
| TB11-42 | M42 | 63 | 104 | 50 | 32 | 330 | 63 | 32 |
| TB11-48 | M48 | 80 | 135 | 65 | 40 | 355 | 78 | 39 |
| TB11-56 | M56 | 80 | 135 | 65 | 40 | 355 | 78 | 39 |
