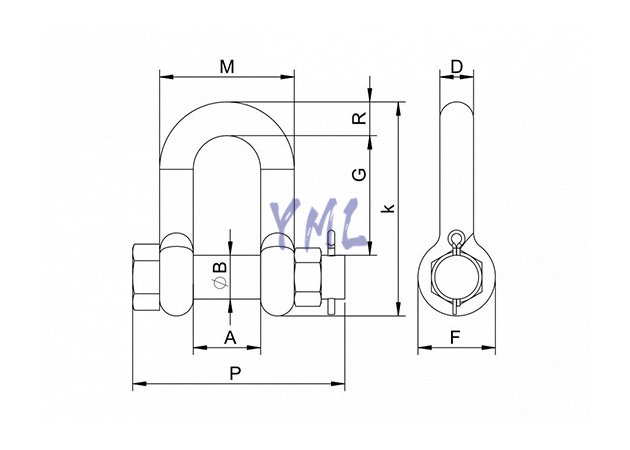

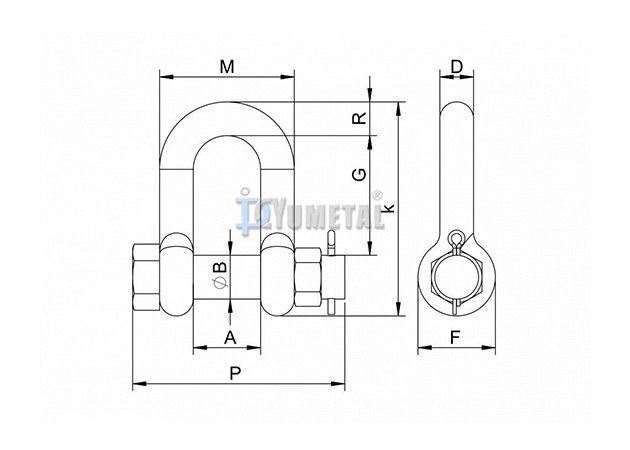

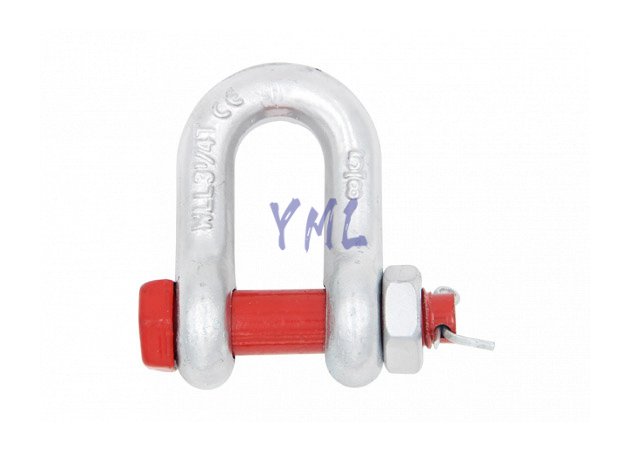

| Art No. | Size | Working Load Limit | Dimensions (inch) | Tolerance(+/-) | Weight | |||||||||
| (inch) | (ton) | A | B | D | F | G | K | M | P | R | G | A | (lbs/pc) | |
| SH08-3/16 | 3/16" | 1/3 | 0.37 | 0.23 | 0.25 | 0.61 | 0.67 | 1.36 | 0.82 | 1.39 | 0.25 | 0.06 | 0.06 | 0.07 |
| SH08-1/4 | 1/4" | 1/2 | 0.47 | 0.31 | 0.25 | 0.62 | 0.91 | 1.59 | 0.97 | 1.56 | 0.25 | 0.06 | 0.06 | 0.13 |
| SH08-5/16 | 5/16" | 3/4 | 0.53 | 0.38 | 0.31 | 0.75 | 1.07 | 1.91 | 1.15 | 1.82 | 0.31 | 0.06 | 0.06 | 0.23 |
| SH08-3/8 | 3/8" | 1 | 0.66 | 0.44 | 0.38 | 0.92 | 1.28 | 2.31 | 1.42 | 2.17 | 0.38 | 0.13 | 0.06 | 0.33 |
| SH08-7/16 | 7/16" | 1-1/2 | 0.75 | 0.5 | 0.44 | 1.06 | 1.48 | 2.67 | 1.63 | 2.51 | 0.44 | 0.13 | 0.06 | 0.49 |
| SH08-1/2 | 1/2" | 2 | 0.81 | 0.64 | 0.5 | 1.18 | 1.66 | 3.03 | 1.81 | 2.8 | 0.50 | 0.13 | 0.06 | 0.75 |
| SH08-5/8 | 5/8" | 3-1/4 | 1.06 | 0.77 | 0.63 | 1.5 | 2.04 | 3.76 | 2.32 | 3.56 | 0.63 | 0.13 | 0.06 | 1.47 |
| SH08-3/4 | 3/4" | 4-3/4 | 1.25 | 0.89 | 0.75 | 1.81 | 2.4 | 4.53 | 2.75 | 4.15 | 0.81 | 0.25 | 0.06 | 2.52 |
| SH08-7/8 | 7/8" | 6-1/2 | 1.44 | 1.02 | 0.88 | 2.1 | 2.86 | 5.33 | 3.2 | 4.82 | 0.97 | 0.25 | 0.06 | 3.85 |
| SH08-1 | 1" | 8-1/2 | 1.69 | 1.15 | 1 | 2.38 | 3.24 | 5.94 | 3.69 | 5.39 | 1.00 | 0.25 | 0.06 | 5.55 |
| SH08-1-1/8 | 1-1/8" | 9-1/2 | 1.81 | 1.25 | 1.13 | 2.68 | 3.61 | 6.78 | 4.07 | 5.9 | 1.25 | 0.25 | 0.06 | 7.6 |
| SH08-1-1/4 | 1-1/4" | 12 | 2.03 | 1.4 | 1.25 | 3 | 3.97 | 7.5 | 4.53 | 6.69 | 1.38 | 0.25 | 0.06 | 10.81 |
| SH08-1-3/8 | 1-3/8" | 13-1/2 | 2.25 | 1.53 | 1.38 | 3.31 | 4.43 | 8.28 | 5.01 | 7.21 | 1.50 | 0.25 | 0.13 | 13.75 |
| SH08-1-1/2 | 1-1/2" | 17 | 2.38 | 1.66 | 1.5 | 3.62 | 4.87 | 9.05 | 5.38 | 7.73 | 1.62 | 0.25 | 0.13 | 18.5 |
| SH08-1-3/4 | 1-3/4" | 25 | 2.88 | 2.04 | 1.75 | 4.19 | 5.82 | 10.97 | 6.38 | 9.33 | 2.12 | 0.25 | 0.13 | 31.4 |
| SH08-2 | 2" | 35 | 3.25 | 2.3 | 2.1 | 5 | 6.82 | 12.74 | 7.25 | 10.41 | 2.36 | 0.25 | 0.13 | 46.75 |
| SH08-2-1/2 | 2-1/2" | 55 | 4.12 | 2.8 | 2.63 | 5.68 | 8.07 | 14.85 | 9.38 | 13.58 | 2.63 | 0.25 | 0.25 | 85 |
| SH08-3 | 3" | 85 | 5 | 3.25 | 3 | 6.5 | 8.56 | 16.87 | 11 | 15.13 | 3.50 | 0.25 | 0.25 | 124.25 |
| SH08-3-1/2 | 3-1/2" | 120 | 5.25 | 3.75 | 3.62 | 8 | —— | —— | —— | 19 | —— | 0.25 | 0.25 | —— |
| SH08-4 | 4" | 150 | 5.5 | 4.25 | 4.1 | 9 | —— | —— | —— | 19.75 | —— | 0.25 | 0.25 | —— |
