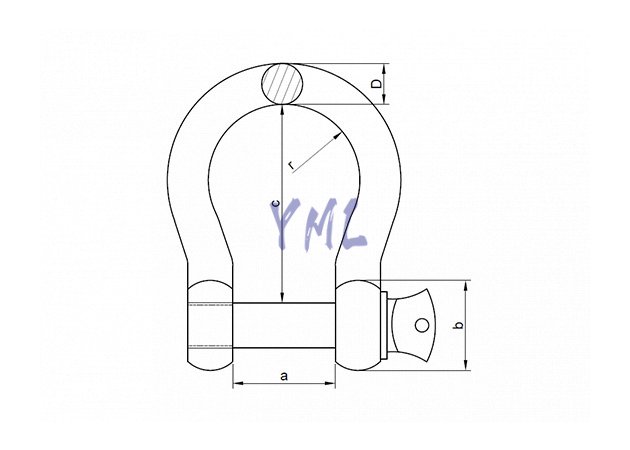

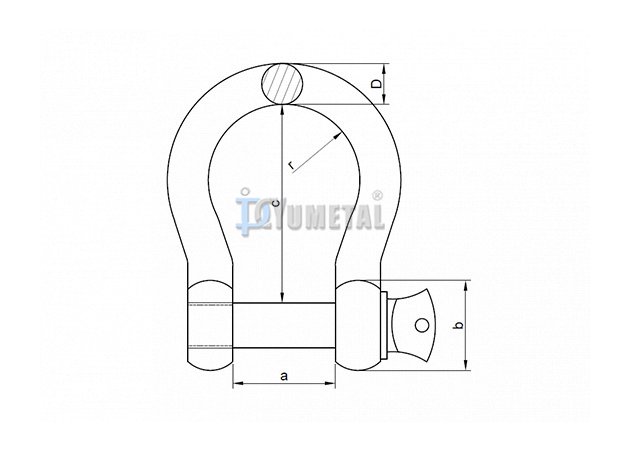

| Art No. | Size | WLL | Dimensions (mm) | Weight | ||||
| mm | kg | D | a | c | r | b | Kg/pc | |
| SH01-05 | 5 | 80 | 5 | 10 | 19 | 8 | 11 | 0.022 |
| SH01-06 | 6 | 100 | 6 | 13 | 25 | 10 | 14 | 0.040 |
| SH01-08 | 8 | 200 | 8 | 16 | 32 | 12 | 18 | 0.080 |
| SH01-10 | 10 | 320 | 10 | 19 | 38 | 16 | 20 | 0.140 |
| SH01-12 | 12 | 520 | 12 | 25 | 51 | 19 | 26 | 0.300 |
| SH01-16 | 16 | 800 | 16 | 32 | 64 | 28 | 33 | 0.500 |
| SH01-20 | 20 | 1100 | 20 | 38 | 76 | 33 | 40 | 0.800 |
| SH01-22 | 22 | 1500 | 22 | 44 | 89 | 37 | 50 | 1.300 |
| SH01-25 | 25 | 2100 | 25 | 51 | 100 | 40 | 57 | 2.000 |
| SH01-28 | 28 | 3000 | 28 | 57 | 115 | 47 | 68 | 3.100 |
| SH01-32 | 32 | 3500 | 32 | 64 | 127 | 52 | 73 | 4.300 |
| SH01-38 | 38 | 5000 | 38 | 76 | 152 | 63 | 85 | 7.000 |
| SH01-45 | 45 | 7000 | 45 | 90 | 180 | 75 | 96 | 12.500 |
| SH01-50 | 50 | 8000 | 50 | 102 | 200 | 78 | 108 | 17.500 |
